GA Plus Relay

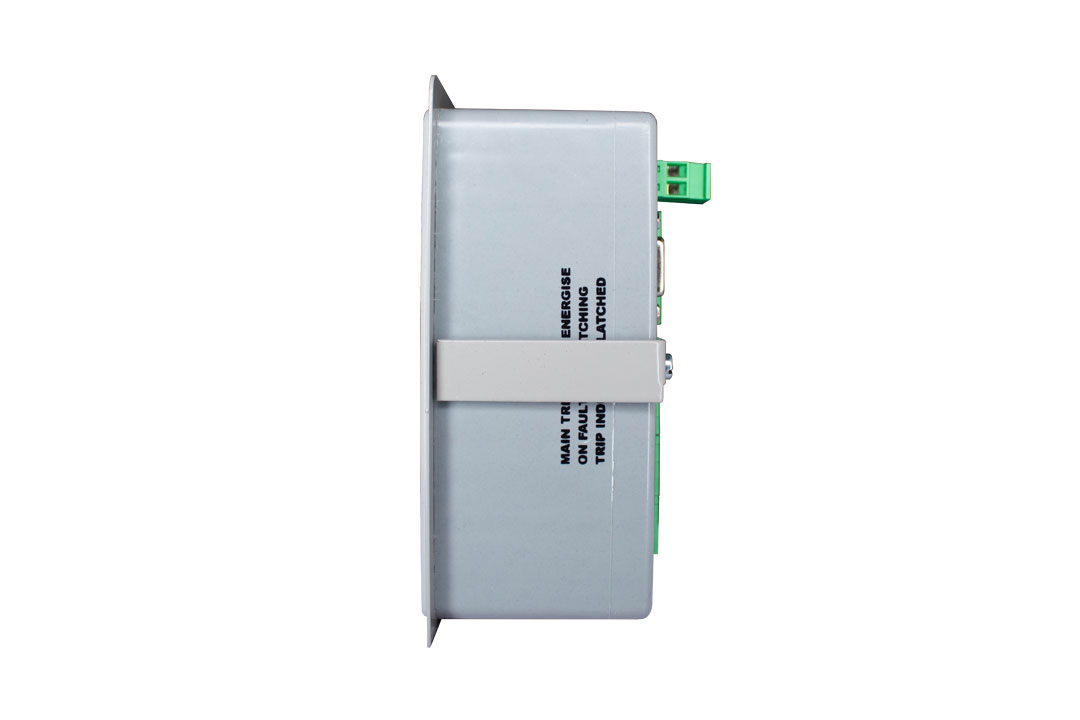

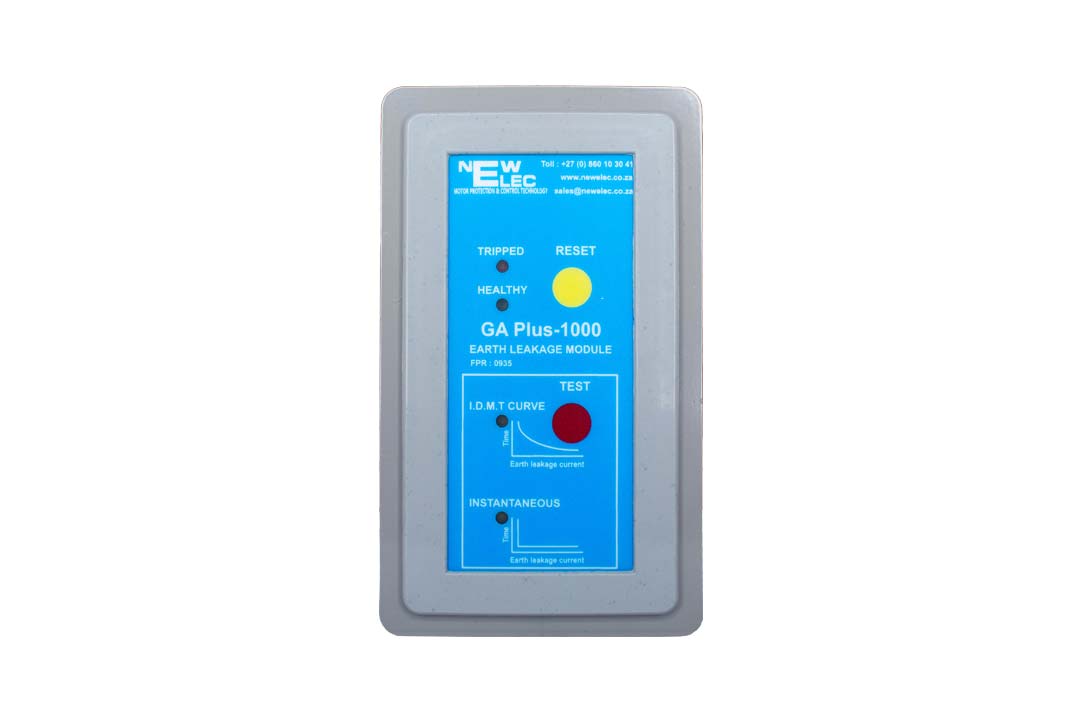

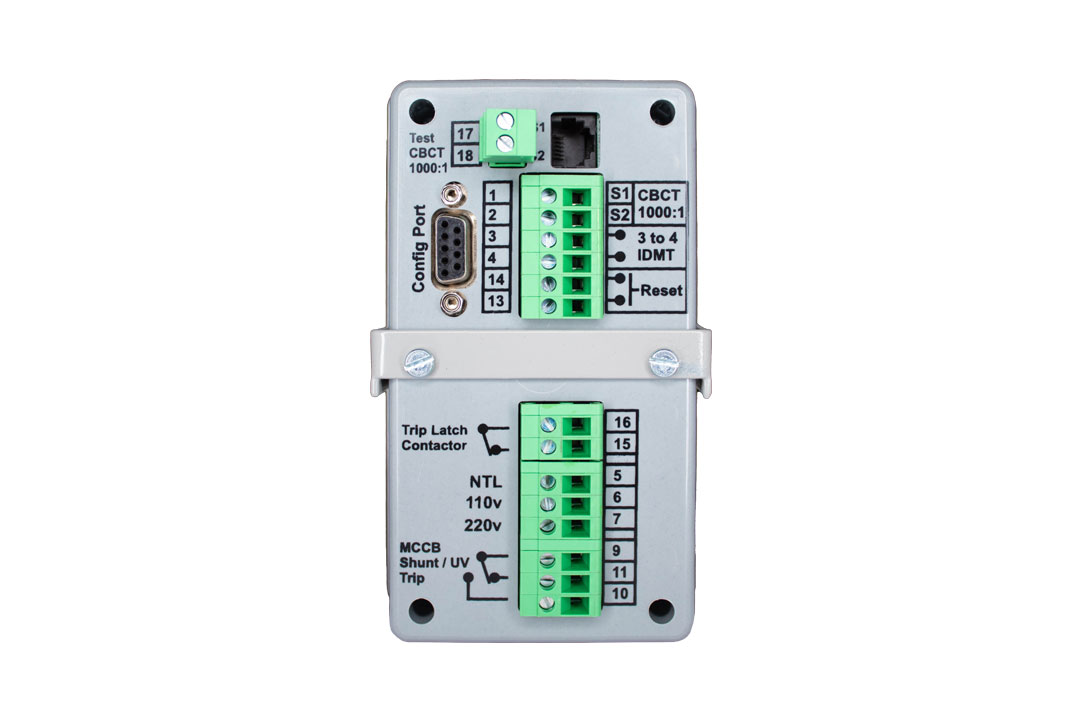

The GA Plus comes fitted with an integrated Test pushbutton connected to the test winding on the CBCT allowing one to test functionality of GA Plus and trip circuits a rear accessed RS232 interface allowing customers to configure output trip relay configuration options, including Latched or Non-latching main trip contact, Fail-safe or Non Fail-safe options, as well as 110V-220V or 380V-525V A.C. auxiliary supply voltages.
The GA Plus
The GA Plus comes fitted with an integrated Test pushbutton connected to the test winding on the CBCT allowing one to test functionality of GA Plus and trip circuits a rear accessed RS232 interface allowing customers to configure output trip relay configuration options, including Latched or Non-latching main trip contact, Fail-safe or Non Fail-safe options, as well as 110V-220V or 380V-525V A.C. auxiliary supply voltages.
The trip contact current rating is a sturdy 6A at 220V and 3A at 525V A.C. A latched ‘contactor trip’ change-over contact can only be reset by pressing the control panel mounted pushbutton.
Sensitivities range from 30mA to 1000mA with user selectable instantaneous or IDMT curve selection while using the same earth leakage core.
Brochure
GA Plus Series Brochure
GA Plus ELX Brochure
Product Kits
GA Plus Kits
GA Plus ELX Kits
Documentation
GA Series Installation Manual
Presentation
GA Series Presentation
Product List
GA Plus Earth Leakage Relays
| FPR0931 | GA0-PLUS-0030-0-0-0 |
| FPR0932 | GA0-PLUS-0250-0-0-0 |
| FPR0933 | GA0-PLUS-0375-0-0-0 |
| FPR0934 | GA0-PLUS-0500-0-0-0 |
| FPR0935 | GA0-PLUS-1000-0-0-0 |
| FPR0936 | GAA-PLUS-0030-0-0-0 |
| FPR0937 | GAA-PLUS-0250-0-0-0 |
| FPR0938 | GAA-PLUS-0375-0-0-0 |
| FPR0939 | GAA-PLUS-0500-0-0-0 |
| FPR0940 | GAA-PLUS-1000-0-0-0 |
Core Balance Current Transformers for use with GA0 Plus and GAA Plus Earth Leakage Relays
| BTX0010 | C.B.C.T. 1000/1 GA -PLUS 43mm ID |
| BTX0011 | C.B.C.T. 1000/1 GA -PLUS 63mm ID |
| BTX0012 | C.B.C.T. 1000/1 GA -PLUS 104mm ID |
| BTX0013 | C.B.C.T. 1000/1 GA -PLUS 150mm ID |
| BTX0014 | C.B.C.T. 1000/1 GA -PLUS 190mm ID |
Configuration Software
GA Plus Configuration Software
